Automatic double-head seaming machine delivering precise seam formation, increased productivity, and reliable container sealing.
Additional information
| Weight | 1800 kg |
|---|---|
| Dimensions | 2400 × 1200 × 1800 mm |
| Can diameter | Ø151 – Ø305 mm |
| Diagonal | max. 240 mm x 240 mm |
| Can height | 35 – 320 mm |
| Production speed | 20 – 25 cpm (depending on size and shape) |
| Power | 3.5 Kw |
| Machine dimensions | 2400 (3100) x 1200 x 1800 mm |
| Weight | 1,800 kg |
| Features | Control cabinet, Touchscreen |
Description

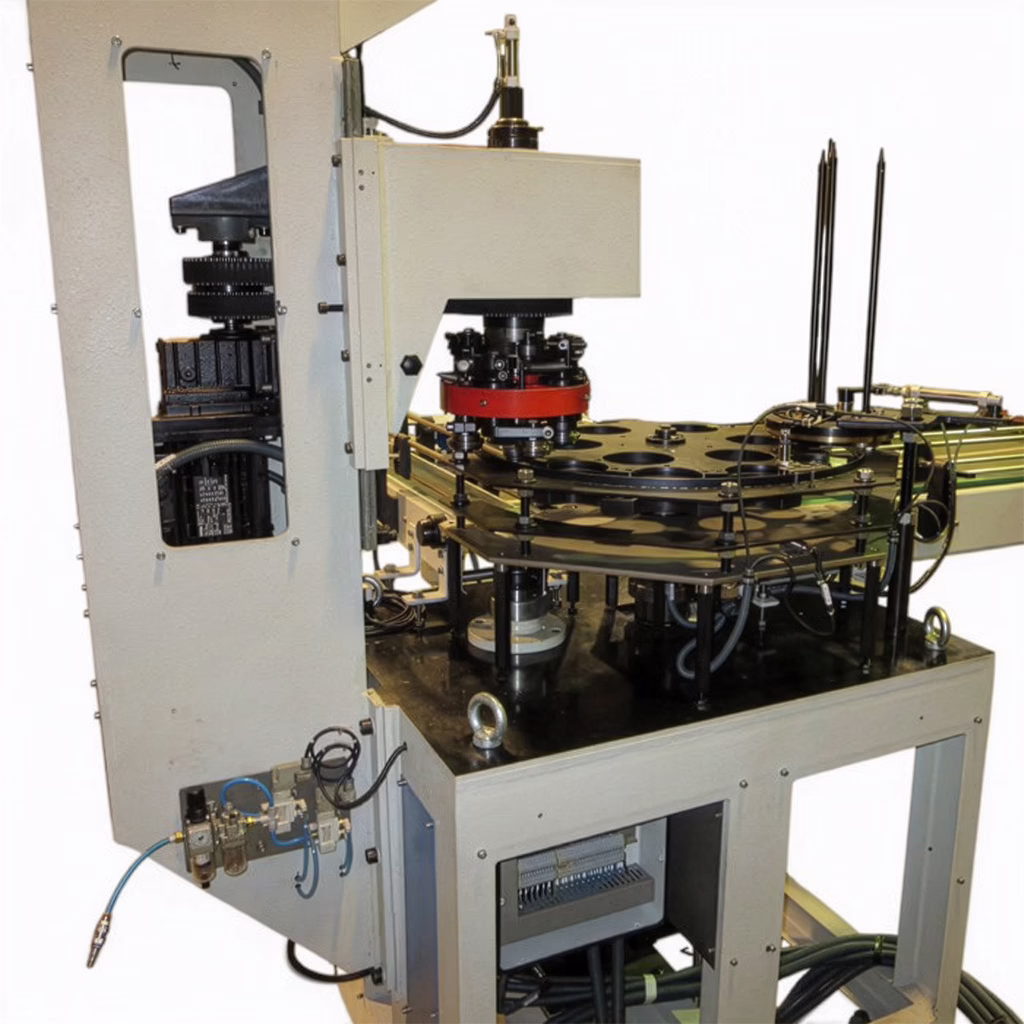

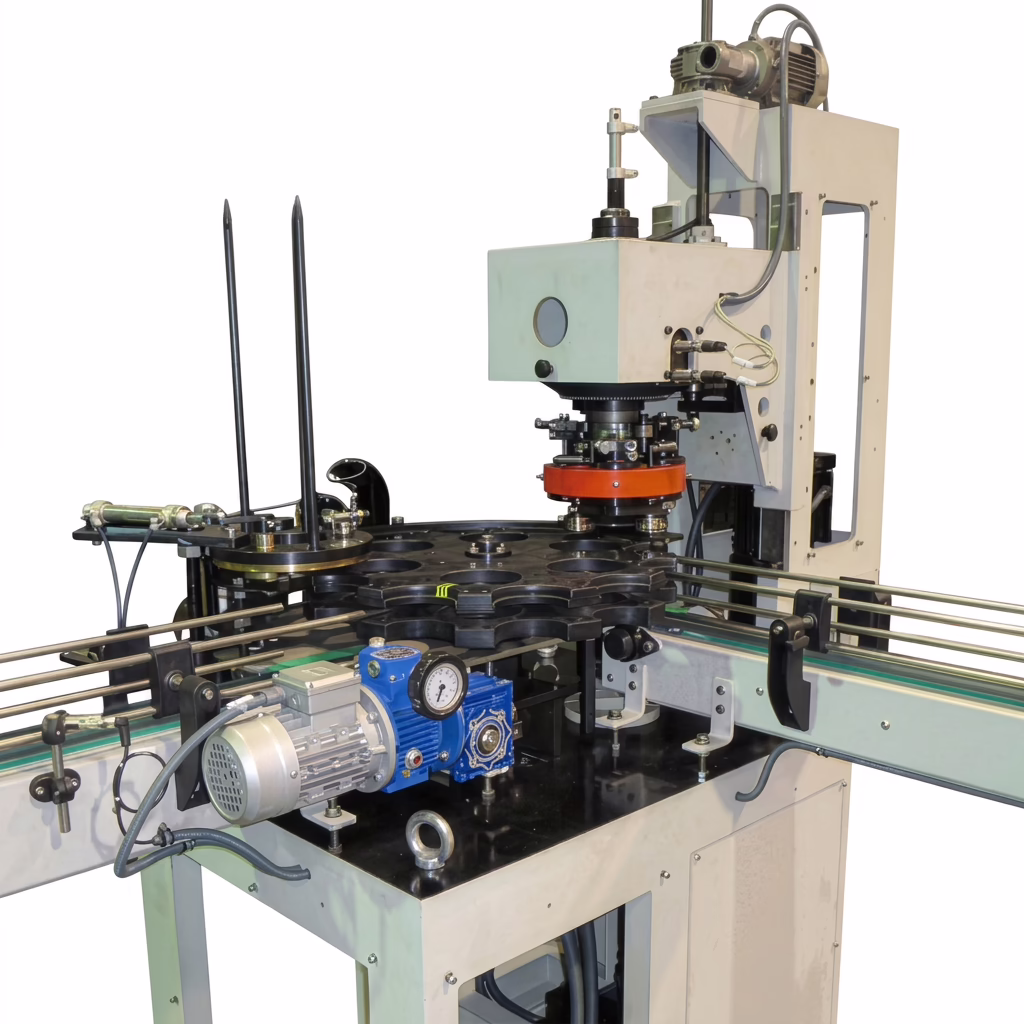

PROseam SD-II – Automatic seamer for round and rectangular cans
The PROseam SD-2 is a fully automatic double-head seaming machine designed for precise double seam formation on metal containers. The machine provides accurate seam dimensions, reliable operation, and increased production capacity. Consistent sealing quality and efficient performance ensure dependable manufacturing results.
Diameter range: 151 mm – 305 mm
Diagonal: max. 240 mm x 240 mm
Height range: 35 mm – 320 mm
Output: Max. up to 20 – 25 c.p.m. (depending on size and shape)
Power: 3,5 Kw
Size: 2400 (3100) x 1200 x 1800 mm
Weight: 1.800 kgs.
Features: Control cabinet, Touch screen
Can End Manufacturing
What equipment is required?Job Folbert2026-08-06T22:42:16+02:00
Presses, forming machines, lining systems, and dryers. Together these produce the end, apply the sealing compound, and cure it so the end is ready to be seamed onto a can body.
Can PROCAN supply complete end lines?Job Folbert2026-08-06T22:42:16+02:00
Yes. PROCAN can supply complete end lines, in the same way as complete can body lines. A line can be delivered as a turnkey project or built up from individual machines and modules.
Can easy-open ends be produced?Job Folbert2026-08-06T22:42:16+02:00
Depending on configuration. Whether easy-open ends can be produced follows from how the press and forming equipment are configured for the customer’s product requirements.
Can multiple end sizes be produced?Job Folbert2026-08-06T22:42:17+02:00
Yes. Multiple end sizes can be produced. End sizes are changed through tooling changes, and additional tooling can usually be supplied when a new size is required.
How are end sizes changed?Job Folbert2026-08-06T22:42:17+02:00
Through tooling changes. Changing to a different end size means fitting the tooling for that size, and additional tooling can usually be supplied for formats added later.
What is the function of lining?Job Folbert2026-08-06T22:42:17+02:00
To ensure proper sealing. The lining applies the sealing compound to the end, which is then dried so that the end seals correctly when it is seamed onto the can body.
Why is drying required?Job Folbert2026-08-06T22:42:17+02:00
To cure the sealing compound. Drying follows the lining stage, so that the compound applied to the end is properly cured before that end is seamed onto a can body.
What affects end quality?Job Folbert2026-08-06T22:42:17+02:00
Tooling condition and process control. As with the other stages of the line, the condition of the tooling and the consistency of the process settings determine the quality of the finished end.
Can production be automated?Job Folbert2026-08-06T22:42:17+02:00
Yes. Can end production can be automated. The level of automation is one of the specifications defined during project planning, and it also affects the number of operators the line requires.
Can existing lines be upgraded?Job Folbert2026-08-06T22:42:17+02:00
Yes. Existing end lines can be upgraded. As with other PROCAN equipment, feasibility depends on machine condition and requirements, and an upgrade can cover controls, formats, safety systems, or automation.
