Automatic powder coating machine developed for the application of protective coatings onto welded can body seams, ensuring excellent corrosion resistance and product quality.
Additional information
| Weight | 800 kg |
|---|---|
| Dimensions | 1000 × 750 × 2000 mm |
| Machine model | PROcoat 60 |
| Machine type | PC |
| Conveying speed | 10 – 75 m / min |
| Can diameter | Ø52 – Ø300 mm |
| Can height | Any height |
| Spraying width | 8 – 15 mm |
| Sheet thickness | 0.14 – 0.50 mm |
| Maximum speed | Up to approx. 800 cpm |
| Production speed | 30 – 800 cpm |
| Power | 2.5 Kw |

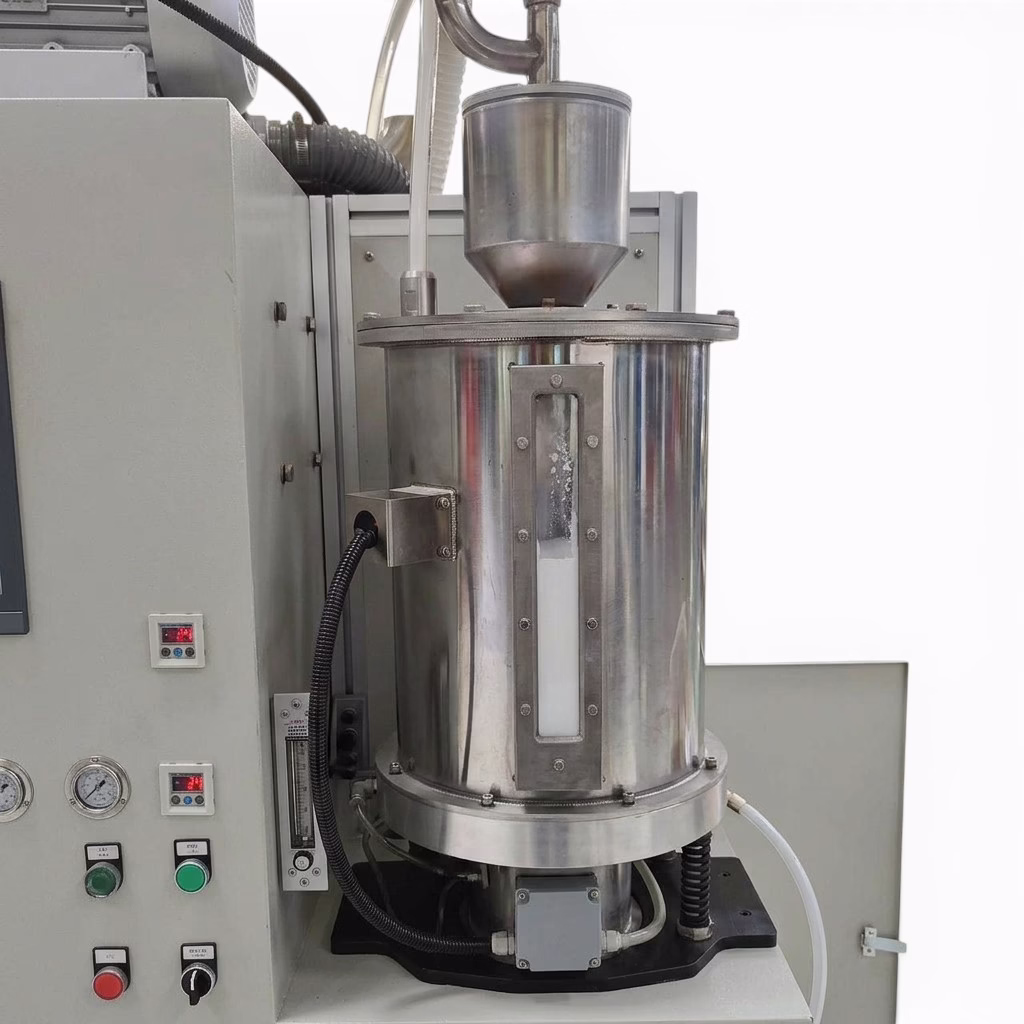

| Powder container size | 58L |
| Powder type | Polyester, Epoxy resin |
| Air pressure | 0,4 MPA / 4 bar |
| Noise level | ≤ 85 Db |
| Machine body length | 1000 mm |
| Machine body width | 750 mm |
| Machine body height | 2000 mm |
| Weight | 800 kg |
Description

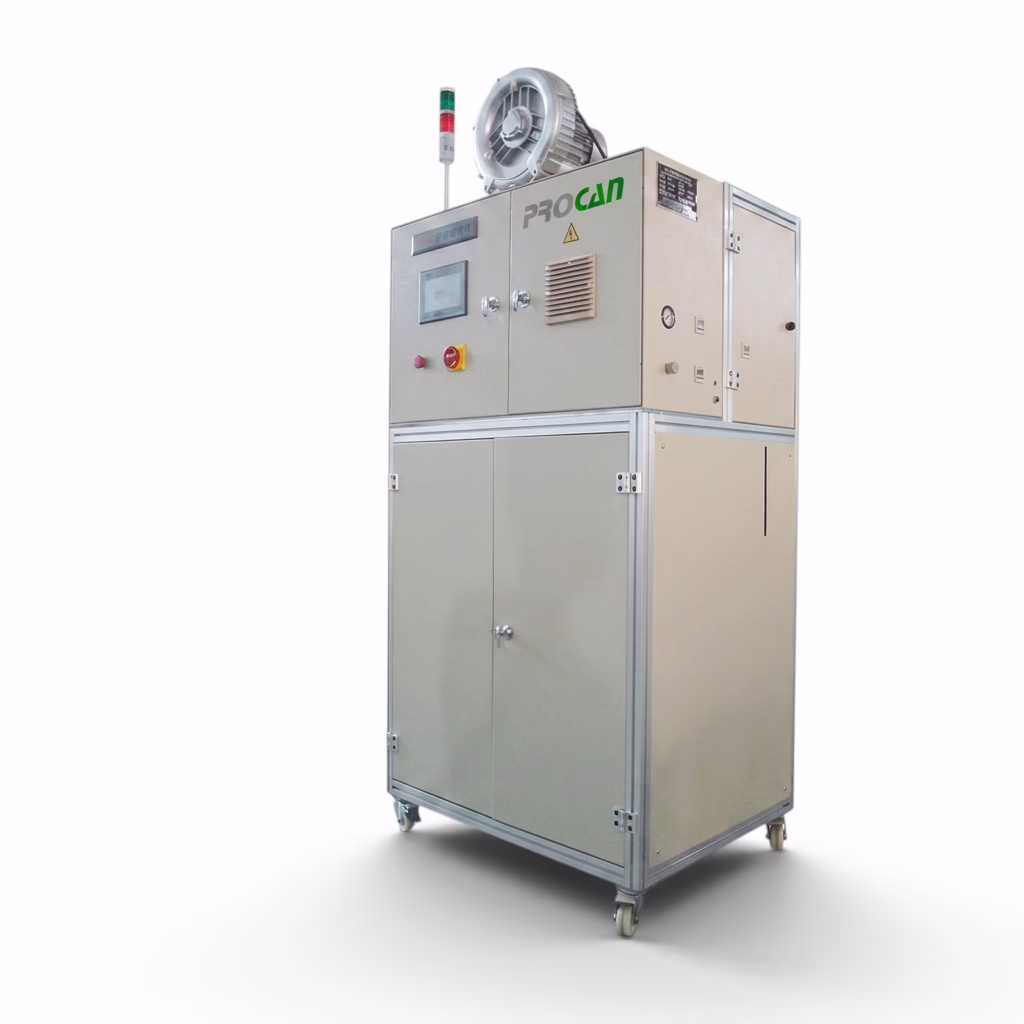

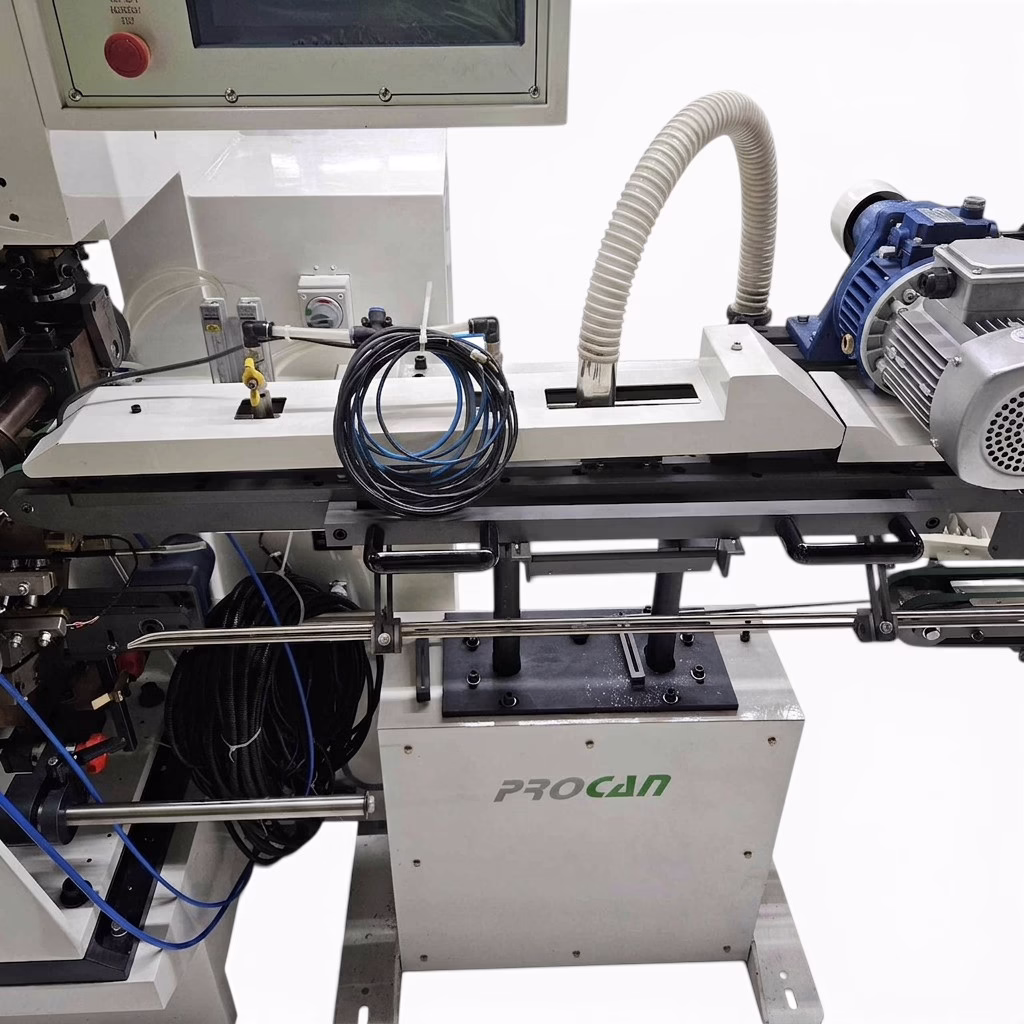

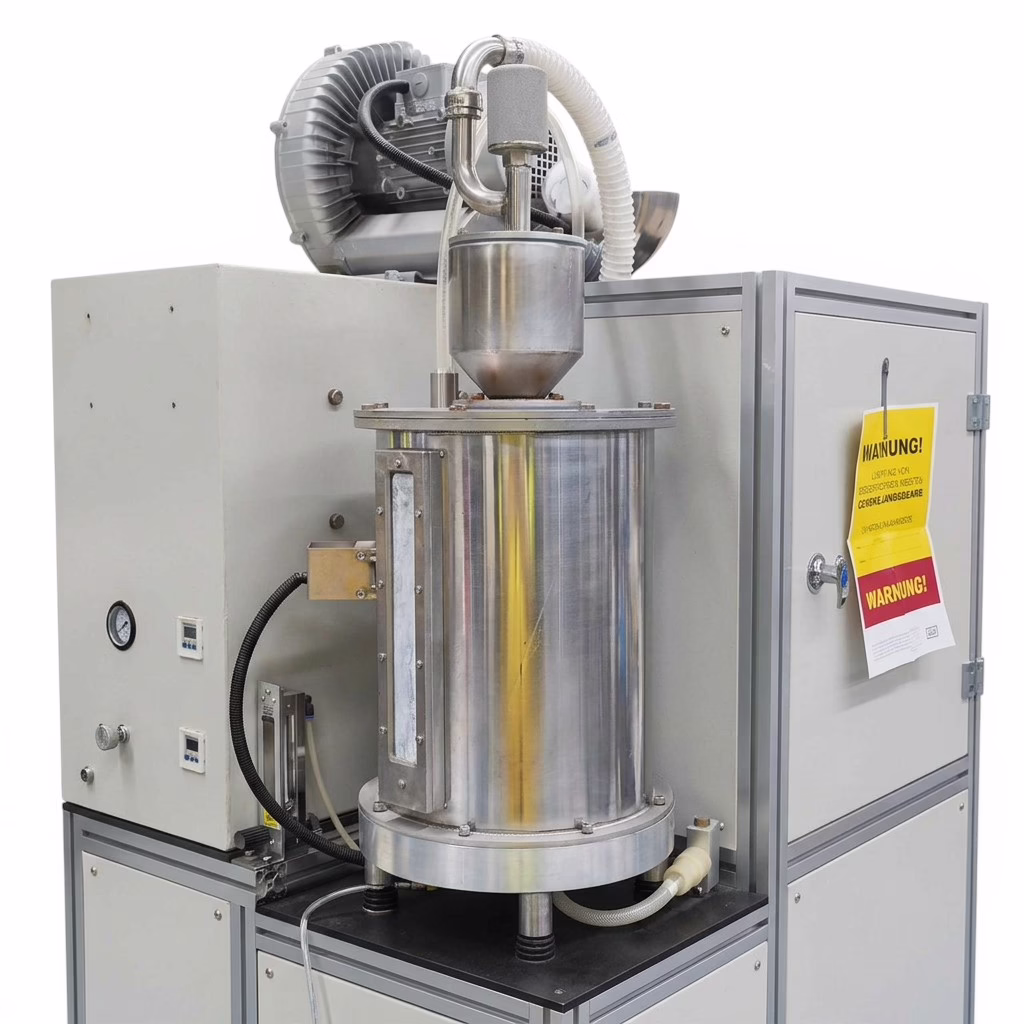

PROcoat 60 – Automatic powder coating unit
The PROcoat 60 is a fully automatic powder coating machine designed for the application of protective powder coatings onto welded can body seams. The machine ensures accurate coating coverage, improved corrosion resistance, and reduced coating consumption. Consistent coating quality and reliable operation support high-speed production environments.
Powder Coating
Why is powder coating applied?Job Folbert2026-08-06T22:42:09+02:00
To protect the weld seam against corrosion. The coating is applied over the seam produced by the body welder and is then cured, so that the welded area is protected in the finished can.
Is internal coating necessary?Job Folbert2026-08-06T22:42:10+02:00
Often yes, depending on product requirements. The need for internal coating follows from what the can will contain, which is one of the product specifications defined at the start of a project.
What affects coating quality?Job Folbert2026-08-06T22:42:10+02:00
Application settings, powder quality, and curing conditions. Because the coating is cured after application, both the coating stage and the curing stage influence the protection achieved on the finished seam.
What happens if coating is under-cured?Job Folbert2026-08-06T22:42:10+02:00
Reduced adhesion and corrosion resistance. Since the purpose of the coating is to protect the weld seam against corrosion, incomplete curing directly undermines the protection the coating is applied to provide.
What happens if coating is over-cured?Job Folbert2026-08-06T22:42:10+02:00
Possible degradation of coating properties. Curing quality is influenced by line speed, coating thickness, and power settings, so over-curing is managed through the same process controls as under-curing.
Can coating thickness be adjusted?Job Folbert2026-08-06T22:42:10+02:00
Yes. The coating layer can be adjusted, and the powder spraying system provides settings for regulating powder application and layer consistency. Coating thickness is also one of the factors affecting curing quality.
How is coating quality verified?Job Folbert2026-08-06T22:42:10+02:00
Through visual and performance testing. This forms part of the wider quality control applied across the line, alongside weld seam inspection and leak testing of finished cans.
Can different powders be used?Job Folbert2026-08-06T22:42:10+02:00
Yes. Different powder types can be used, such as polyester or epoxy resin, with the powder selected to suit the product and the coating requirements that apply to it.
What maintenance is required?Job Folbert2026-08-06T22:42:10+02:00
Regular cleaning and inspection. As with the other machines in the line, consistent maintenance supports stable process conditions and therefore consistent coating quality.
Can existing coating systems be upgraded?Job Folbert2026-08-06T22:42:10+02:00
Often yes. As with other PROCAN equipment, feasibility depends on machine condition and customer requirements, and an upgrade can include new controls, safety systems, or automation features.
